Adding a Secondary Language Access Code

Updated

LEXI Secondary Language Access Codes provide multi-language closed captioning to a single EEG encoder (hardware or virtual). We have configured each Access Code to encode captions into separate 608/708 caption channels/services. EEG uses an S2 Access Code as an example of adding and applying a Secondary Language Access Code to an encoder through iCap Admin and LEXI Translate.

There are two ways to use S2 Access Codes:

  • Through LEXI Translate, which allows full control of language selection and caption display settings.
  • Using a human captioner who is directed on which language they will be captioning to the S2 Access Code. The captions will appear on the S2 CC3 channel, while the S1 CC1 channel will receive the captions in the primary language.

For more information about LEXI Translate, please click here or contact eeg.sales@ai-media.tv.

Adding an Access Code

To add an Access Code:

  1. Log into iCap Admin with your admin user login credentials.
  2. In the left toolbar, click Access Codes.

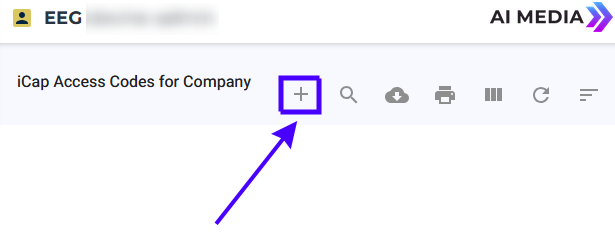

  3. In the top toolbar, click the + icon. The Create Access Code window opens.
  4. Enter a Name for New Access Code, for example New_S1_Code.
    Note: Be sure to enter this name correctly. You cannot change this name once you finalize the access code.
  5. From the CC Service menu, select a service number, for example 2, and then click Next. The options in this menu correspond to S-service numbers. For example, 2 corresponds to service number S2.
  6. In the Associated Encoders screen, select the Primary Encoder user to link this access code to. If you do not have an encoder user, contact Ai-Media Technical Sales for help.
  7. Select optional Secondary Encoders, and then click Next. The Captioner Permissions screen opens.

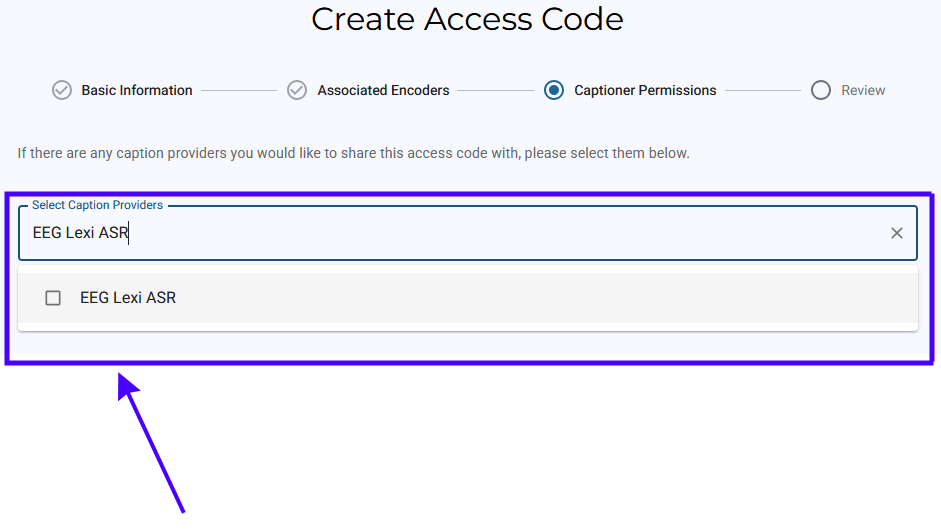

  8. If you are using LEXI, LEXI Translate, or LEXI Voice, select the caption provider EEG Lexi ASR. Otherwise, optionally add any captioning providers you want to share the access code with. You can select multiple providers.

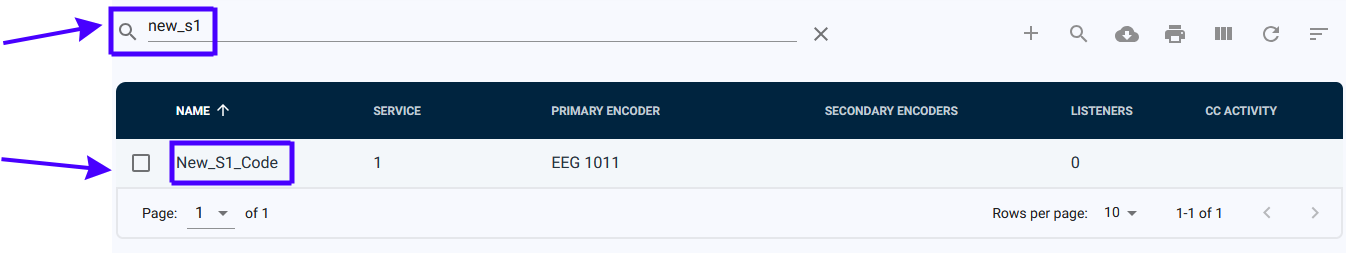

  9. Click Next, then review your new access code, and then click Finish or click Back to make changes. iCap Admin returns to your list of access codes, where you can find or search for your new code.



Adding an S2 Access Code to LEXI Translate

  1. Navigate to https://eegcloud.tv and log with your username and password.
  2. On the EEG Cloud dashboard, click LEXI Translate.
  3. Click Create New Translation.

Uploading Words

To upload words:

  1. Enter the access code of the encoder that will receive captions.
    Note: Please note that your Access Code must be secondary language access code and must shared with the LEXI agency (ex. EEG LEXI ASR).
  2. Use iCap Admin to configure EEGASR if this was not done as part of the factory configuration.

Adding a Secondary Language Access Code

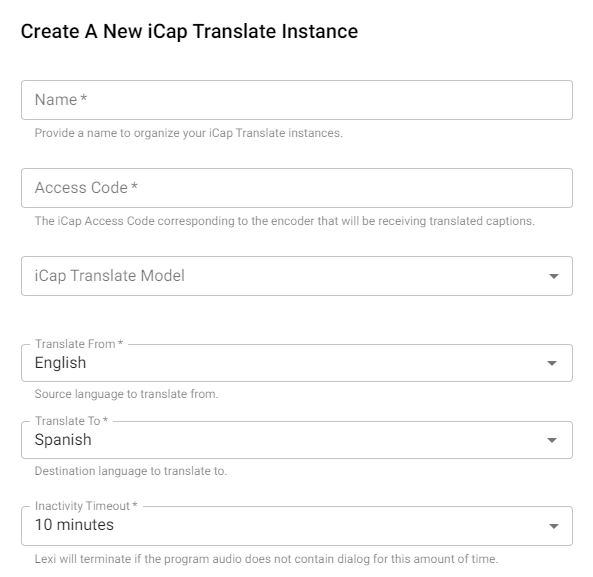

Use the options in the Create A New LEXI Translate Instance window to configure your translation.

Translation Settings

LEXI Translate supports translations to and from over 50 languages, including:

  • Danish
  • English
  • French
  • German
  • Italian
  • Maori
  • Portuguese
  • Spanish

For a full list of supported languages, visit What languages does LEXI Translate support?

Follow these steps to add a secondary language access code:

  1. Enter a Name for your new instance.
  2. Enter the Access Code that corresponds to the encoder that will receive the translated captions.
  3. Select the LEXI Translate model.
  4. Select a language to Translate From.
  5. Select a language to Translate To.
  6. Choose your preferred Inactivity Timeout. LEXI Translate jobs that runs for this amount of time without any translations terminate automatically. Set this to None to allow jobs to run indefinitely.

Caption Display Settings

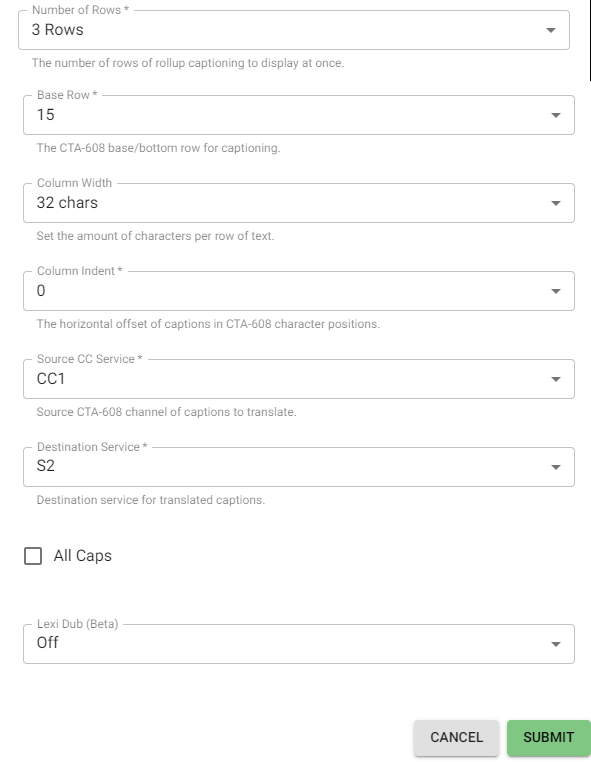

This image shows caption display settings:

  1. Enter a number of rows to display. The available range of rows per roll-up is 2 to 4.
  2. Choose a Base row for the vertical position of the CTA-608 base/bottom row for captioning. The positions range from 2 (top of the screen) to 15 (bottom of the screen).
  3. Select a Column indent for the horizontal offset of captions in CTA-608 character positions. The available range is from 0 to 28 characters.
  4. Choose the Source Caption Channel of the captions to translate. The channels range from CC1 to CC4.
  5. Select a Destination Caption Service for translated captions, for example S2.
  6. Click All Caps to force all captions to be display in uppercase. Otherwise, captions display in mixed case.
  7. EEG recommends leaving Lexi Dub set to Off.
