This document describes the security modes for iCap encoders.

Applicability

The information in this document applies to these encoders:

• HD492
• AV650
• EN537
• AV610
• HD491, with software version v2.5.8 or later

Security Settings

Use the menus on the encoder's front panel LCD display and navigate to System Setup > Security to access the encoder's security settings. Options within this menu are:

• Security Mode
• Show Password
• New Password

Security Modes

Available security modes are:

• Debug: The encoder's default security setting. It allows SSH, ping and access without a password to the configuration web page from computers on your network.
• Password: Sets the website to HTTPS for secure communication, and requires a password to log into the site. The default username is admin.

  Note: This mode is not available on AV610 encoders.


  Figure 1. Password mode selected

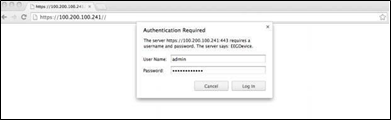

  Figure 2. Configuration page password prompt

  To view your password, press the X button to return to the top menu level, and then navigate to System Setup > Security > Show Password.


  Figure 3. Default password displayed


• Production: Medium security setting. Disables incoming SSH and ping. In this mode, the configuration web page is available.
• Locked: Highest security setting. Disables SSH, ping, and the configuration web page.

Viewing and Changing Passwords

To view your current password for the configuration website, navigate to Security > Show Password.

To change your auto-generated password, select Security > New Password. This immediately makes your previous password invalid. If you are currently logged into the configuration webpage with the previous password, the system requires you to login again with the new password.
